H20 Cleanawater's Award Winning Oil Separators, also known as Oil Water Solids Separators, are engineered to remove oil, grease and suspended solids from waste water. With over 15 years experience we have the technical expertise to provide the right solution, and the right oil separator for your business.
Complete Packages including Non Emulsifying Pumps, Float Switches and Controllers
Large Range from 1,000 to 50,000 litres per hour
Discharge down to 5 mg/L of oil, grease and hydrocarbons from wastewater
Off-The-Shelf Low Cost Oil Separator Packages
Custom Engineered and Designed Oil Separator Solutions
WSAA Appraised (Appraisal No TWA1114)
Benefits Of An Oil Separator System
H2O Cleanawater's oil separator systems are engineered utilising a two stage oil separation process ensuring only the highest standard of treated water.
Water Authority Compliant Solutions

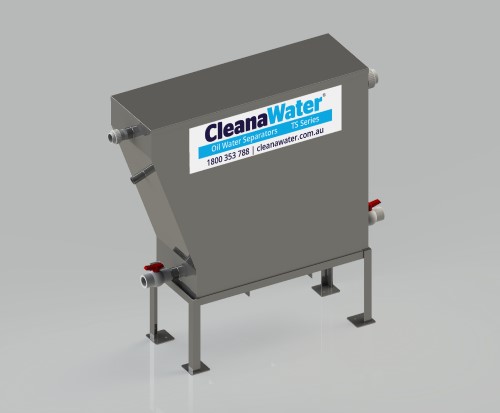

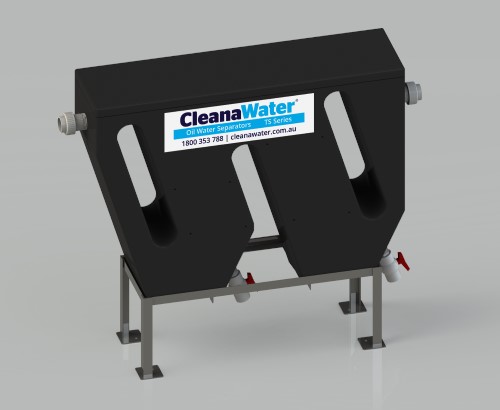

Available in 304 stainless steel, 316 stainless steel and polyethylene to suit all budgets and preferences
Automated operation with no consumables required
Compact, rugged and suitable in extreme environments
Depending on your businesses needs we can design, engineer, site assess, install, commission and service our oil water separators, providing a smooth and hassle free solution, leaving you to focus on running your business.
M1 Motors is an exclusive BMW workshop owned and operated by Joe Chan. M1 Motors operates from a purpose built workshop and host the essential specialist equipment worthy of a BMW Specialist. Joe aimed to install a low cost waste water treatment package capable of treating his wash water before discharging to sewer. Closest sewer was located at the workshop toilet block approximately 40 metres from the wash bay site.
We installed TS1500 series oil water solids separator package ideally suited to single pressure washer wash down bay applications. As the sewer location was a distance from the wash bay, a compact pump tank system to pump the treated wash water up to the sewer which provided Joe the flexibility he needed to install the wash bay in the most ideal location in his workshop.
Utilising Cleanawater random packed separating media technology, our oil water separators utilise a two stage oil separation process, ensuring that your businesses treated waste water exceeds authority standards, and is suitable for discharge.
Cleanawater TS series oil water separators are classified as coalescing type separators, where oil droplets in suspension within the moving water stream are removed by the coalescing process through the separating media.
As the droplet increases in volume it's buoyancy also increases, driving the droplet to the top of the surface. As the oil level grows on the top surface it overflows to a waste oil collection container for disposal.
Similarly, but in reverse, the solids particles impinge on the ring surfaces and lose their velocity. Gravity will draw them to the base of the oil separator unit as their particle size increases.
Upon passing through the two stage impassable path created by the packed media coalescing process, water is now treated and via the oil water separator outlet is ready for disposal.
What Our Clients Say
"I needed an oil separator for our mechanics workshop because washing our customers cars for them upon return is something small we do to show our appreciation of their business. I needed a unit immediately, I called in the morning and the unit arrived the same afternoon."
Michael, MBP Motors
